Forecasting Models

Before reading this document, it is recommended to first read the TSDataset Document to understand the design of TSDataset. Simply speaking, TSDataset is a unified time series data structure throughout the whole modeling lifecycle. It introduces several fundamental but important time series related concepts such as target (including past_target and future_target) and covariates (including known_covariates and observed_covariates). A good understanding of those concepts would be helpful for deep diving into this documentation and building well-performed models.

PaddleTS provides three high-level features for deep time series modeling:

Standard interfaces. The interfaces (fit, predict) declared in PaddleBaseModel are designed to accept and return the unified TSDataset as both input and output to encapsulate the complicated details of processing TSDataset and building samples, simplify the API usage and reduce the learning cost.
PaddleTS introduces the PaddleBaseModelImpl class, which consists of a set of common functions and components throughout the modeling lifecycle (e.g. _prepare_X_y, _init_metrics, compute_loss, etc.). This allows users to focus more on the network architecture and provides maximum convenience for the developers to build new models.
Out-of-box models. PaddleTS provides off-the-shelf deep time series models:

1. A minimal example

Below minimal example uses a built-in RNNBlockRegressor model to illustrate the basic usage.

from paddlets import TSDataset
from paddlets.models.model_loader import load
from paddlets.models.forecasting import RNNBlockRegressor

# 1 prepare the data
data = TSDataset.load_from_csv("/path/to/data.csv")

# 2 data preprocessing and feature engineering
# NB:
# Consider simplifying the example, all these important processes are skipped here.
# Please refer to the following documentation to get more details if needed:
# https://paddlets.readthedocs.io/en/latest/source/modules/transform/overview.html

# 3 init the model instance.
model = RNNBlockRegressor(in_chunk_len=96, out_chunk_len=96)

# 4 fit
model.fit(train_tsdataset=data)

# 5 predict
predicted_dataset = model.predict(data)

# 6 recursive predict
recursive_predicted_dataset = model.recursive_predict(data, predict_length= 3 * 96)

# 7 save the model
model.save("/path/to/save/modelname")

# 8 load the model
loaded_model = load("/path/to/save/modelname")

2. PaddleBaseModel

PaddleBaseModel is the base class for all PaddlePaddle-based time series models. Below is a simplified version of the PaddleBaseModel class declaration, the lengthy implementation details are skipped, you may refer to the PaddleBaseModel API to get a full view.

2.1. Construct method

import abc

from paddlets.models.base import BaseModel


class PaddleBaseModel(BaseModel, metaclass=abc.ABCMeta):
    def __init__(
        self,
        in_chunk_len: int,
        out_chunk_len: int,
        skip_chunk_len: int = 0
    ):
        super(PaddleBaseModel, self).__init__(
            in_chunk_len=in_chunk_len,
            out_chunk_len=out_chunk_len,
            skip_chunk_len=skip_chunk_len
        )
        # other details are skipped

As shown above, the constructor takes 2 required arguments and an optional argument:

in_chunk_len: The size of the loopback window, i.e. the number of time steps feed to the model.
out_chunk_len: The size of the forecasting horizon, i.e. the number of time steps output by the model.
skip_chunk_len: Optional, the number of time steps between in_chunk and out_chunk for a single sample. The skip chunk is neither used as a feature (i.e. X) nor a label (i.e. Y) for a single sample. By default it will NOT skip any time steps.

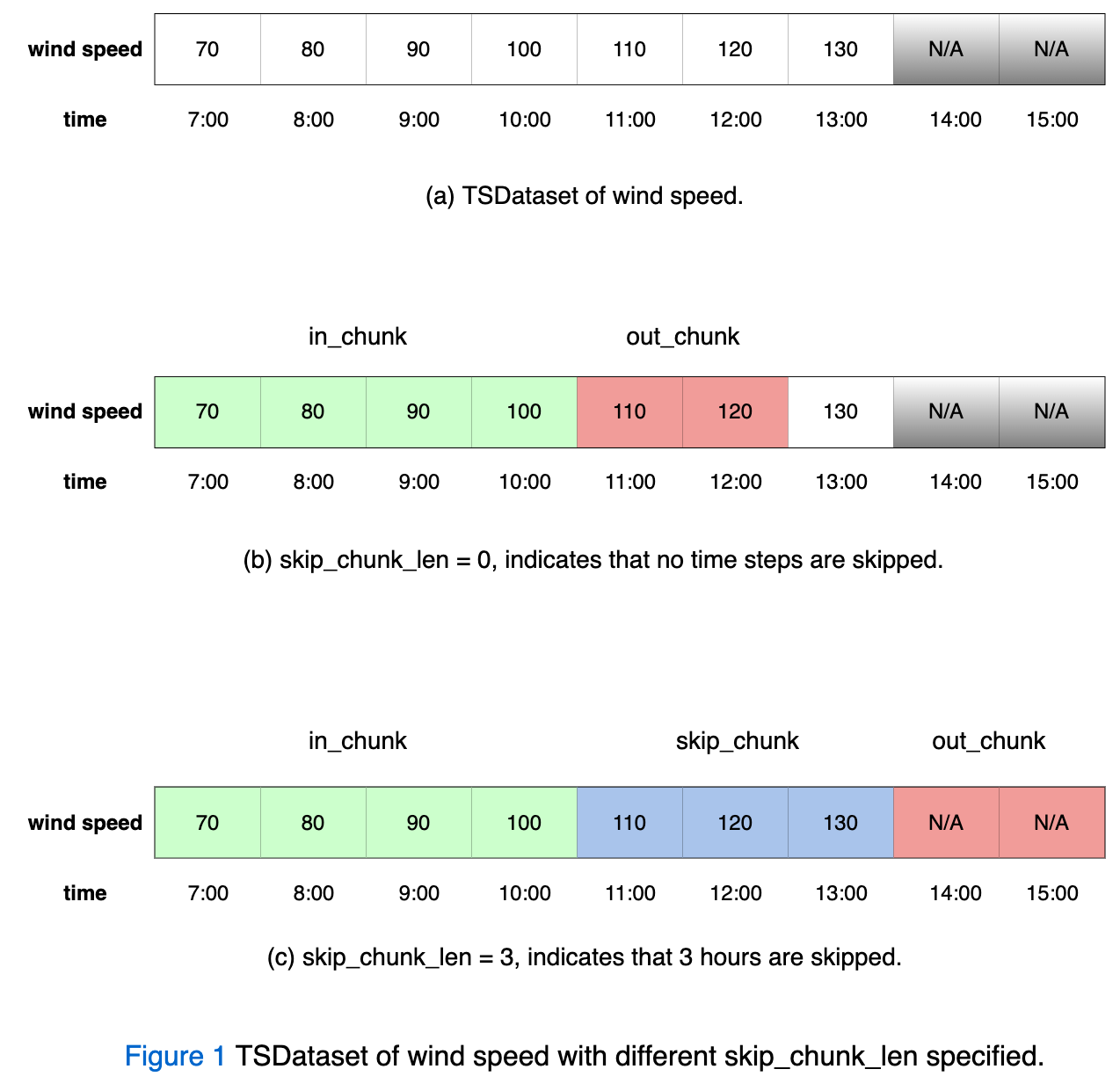

Below Figure 1 shows a concrete example to further explain the above concepts.

TSDataset of wind speed with difference skip_chunk_len specified

Figure 1(a) defines a TSDataset of wind speed with an HOURLY level frequency. It totally contains 7 hours of wind speed data starts at 7:00 and ends at 13:00. Note that the grey shaded wind speed of 14:00 and 15:00 are NOT contained in the given TSDataset.

Figure 1(b) sets the in_chunk_len = 4, skip_chunk_len = 0, out_chunk_len = 2, which indicates the following:

A 4-hour contiguous chunk of wind speed start at 7:00, i.e., [70, 80, 90, 100], will be treated as in_chunk.
A 2-hour contiguous chunk of wind speed start at 11:00, which follows behind the in_chunk, i.e., [110, 120], will be treated as out_chunk.
As the skip_chunk_len is set to 0, no time units between in_chunk and out_chunk are skipped.

The value of in_chunk_len and out_chunk_len shown in Figure 1(c) are identical to that of Figure 1(b), except that the skip_chunk_len is different. More specifically, Figure 1(c) sets the in_chunk_len = 4, skip_chunk_len = 3, out_chunk_len = 2, which indicates the following:

A 4-hour contiguous chunk of wind speed start at 7:00, i.e., [70, 80, 90, 100], will be treated as in_chunk.
A 3-hour contiguous chunk of wind speed start at 11:00, which follows behind the in_chunk, i.e., [110, 120, 130], will be skipped.
A 2-hour contiguous chunk of wind speed start at 14:00, which follows behind the skip_chunk, i.e., [140, 150], will be treated as out_chunk.

In conclusion, the current model will use the wind speed of the past 4 hours to predict the wind speed of the future 2 hours. Meanwhile, it can skip several hours between in_chunk and out_chunk by setting the optional argument skip_chunk_len to any positive integer.

2.2. Fit

All the time series models in PaddleTS have the same fit interface.

To allow users to focus more on the higher level view, the fit method accepts TSDatasets as the training data argument rather than an array-like feature matrix, which encapsulates the details of splitting TSDataset into a set of samples.

The simplified fit method is as follows:

import abc
from typing import Optional

from paddlets.models.base import BaseModel
from paddlets import TSDataset

class PaddleBaseModel(BaseModel, metaclass=abc.ABCMeta):
    # other contents are skipped.
    def fit(
        self,
        train_data: TSDataset,
        valid_data: Optional[TSDataset] = None
    ):
        pass

See below Figure 2 for further explanation:

In this case, the fit method takes the above grey-highlighted TSDataset as the train_data argument and internally split the TSDataset into a set of samples (i.e. red-highlighted in the above figure).

2.3. Predict

All models have the same predict interface. It accepts a TSDataset argument contains both past target and corresponding covariates, then make prediction on the past target and return a newly built TSDataset as the predicted result. The returned TSDataset contains a future target time series chunk, with length equals to out_chunk_len.

The following points are worthwhile to be aware of:

The TSDataset argument of this method only contains the past target and corresponding covariates, but not contain the future target.
The predict method only constructs one sample from the TSDataset argument.
The length of the predicted result for a single predict call is equal to out_chunk_len.

Below is the simplified predict method:

import abc

from paddlets.models.base import BaseModel
from paddlets import TSDataset

class PaddleBaseModel(BaseModel, metaclass=abc.ABCMeta):
    # other contents are skipped.
    def predict(self, data: TSDataset) -> TSDataset:
        pass

We will further explain it through a concrete example. Suppose we have a TSDataset shown in the below Figure 3:

given in_chunk_len = 2, out_chunk_len = 2, skip_chunk_len = 1, the following statements hold:

The data between 7:00 and 13:00 will all be treated as the past target.
As only one sample will be constructed per each call, while known that in_chunk_len = 2, skip_chunk_len = 1, out_chunk_len = 2, thus the data between 12:00 and 13:00 will be fed to the fitted model to predict the future data between 15:00 and 16:00, where the data at 14:00 is skipped.

2.4. Recursive predict

All models have the same model.recursive_predict interface. The recursive strategy involves applying model.predict method iteratively for multi-step time series forecasting. The predicted results from the current call will be appended to the given TSDataset object and will appear in the loopback window for the next call.

Note that each call of model.predict will return a result of length out_chunk_len, so model.recursive_predict will be called ceiling(predict_length/out_chunk_len) times to meet the required length.

For example, the out_chunk_length of the model mentioned before is 96, but model.recursive_predict allows you to set predict_length as 3 * 96 or more, then you get a predicted result of length 3 * 96.

# 6 recursive predict
recursive_predicted_dataset = model.recursive_predict(data, predict_length= 3 * 96)

Note that model.recursive_predict is not supported when model.skip_chunk != 0.

For detailed usage, please refer to API: BaseModel.recursive_predict .

For advanced predict-related capability Backtest, please refer to API: Backtest .

2.5. Model persistence

After fitting a PaddleBaseModel, it is necessary to have a way to persist the model for future use without retraining the model. We also provide a unified method to load a persisted PaddleBaseModel from disk.

The following sections show you how to persist a PaddleBaseModel. Note that a model can be saved multiple times.

from paddlets import TSDataset
from paddlets.models.forecasting import RNNBlockRegressor

# Prepare a fitted model
training_data = TSDataset.load_from_csv("/path/to/csv")

model = RNNBlockRegressor(in_chunk_len=96, out_chunk_len=96)

model.fit(train_tsdataset=training_data)

# save the model for multiple times.
model.save("/path/to/save/modelname_1")
model.save("/path/to/save/modelname_2")

Later you can load back the persisted model with:

from paddlets.models.model_loader import load

loaded_rnn_reg_1 = load("/path/to/save/modelname_1")
loaded_rnn_reg_2 = load("/path/to/save/modelname_2")
