Ensemble Forecaster

Ensemble Forecaster following methods of ensemble learning to aggragate multiple PaddleTS forecaster to one ensemble model. Currently we propose two types of ensemble forecaster, StackingEnsembleForecaster and WeightingEnsembleForecaster.

1. Prepare Data

1.1. Get Data

Get PaddleTS inner-build datasets.

from paddlets.datasets.repository import get_dataset
tsdataset = get_dataset("WTH")

1.2. Split Data

Split dataset into train/test/valid.

ts_train, ts_val_test = tsdataset.split("2012-03-31 23:00:00")
ts_val, ts_test = ts_val_test.split("2013-02-28 23:00:00")

1.3. Preprocess (Optional)

Use StandardScaler to nomalize data.(Optional)

from paddlets.transform.sklearn_transforms import StandardScaler
scaler = StandardScaler()
scaler.fit(ts_train)
ts_train = scaler.transform(ts_train)
ts_val = scaler.transform(ts_val)
ts_test = scaler.transform(ts_test)
ts_val_test = scaler.transform(ts_val_test)

2. Prepare Models

Prepare base models for ensemble model.

Please notice that, to keep the consistancy of models fit and predict, params in_chunk_len, out_chun_len, skip_chunk_len was extracted into Ensemble models, you can ignore this three params for model.

from paddlets.models.forecasting import MLPRegressor
from paddlets.models.forecasting import NHiTSModel
from paddlets.models.forecasting import RNNBlockRegressor



nhits_params = {
    'sampling_stride': 24,
    'eval_metrics':["mse", "mae"],
    'batch_size': 32,
    'max_epochs': 10,
    'patience': 100
}
rnn_params = {
    'sampling_stride': 24,
    'eval_metrics': ["mse", "mae"],
    'batch_size': 32,
    'max_epochs': 10,
    'patience': 100,
}
mlp_params = {
    'sampling_stride': 24,
    'eval_metrics': ["mse", "mae"],
    'batch_size': 32,
    'max_epochs': 10,
    'patience': 100,
    'use_bn': True,
}

3. Construct and Fitting

Construct and fitting ensemble forecaster, WeightingEnsembleForecaster or StackingEnsembleForecaster.

3.1. Construct and Fitting WeightingEnsembleForecaster

WeightingEnsembleForecaster use a aggragate function to aggragate base model predictions, use “mean” mode by default. More infomation about WeightingEnsembleForecaster please read WeightingEnsembleForecaster doc .

Example1

Use default mode by default (default mode is “mean”)

from paddlets.ensemble import WeightingEnsembleForecaster

reg = WeightingEnsembleForecaster(
in_chunk_len=7 * 24,
out_chunk_len=24,
skip_chunk_len=0,
estimators=[(NHiTSModel, nhits_params),(RNNBlockRegressor, rnn_params), (MLPRegressor, mlp_params)])

reg.fit(ts_train, ts_val)

Example2

Use selected weighting mode

from paddlets.ensemble import WeightingEnsembleForecaster

#get mode list
WeightingEnsembleForecaster.get_support_modes()
#Supported ensemble modes:['mean', 'min', 'max', 'median']

#select mode
reg = WeightingEnsembleForecaster(
in_chunk_len=7 * 24,
out_chunk_len=24,
skip_chunk_len=0,
estimators=[(NHiTSModel, nhits_params),(RNNBlockRegressor, rnn_params), (MLPRegressor, mlp_params)],
mode = "min")

reg.fit(ts_train, ts_val)

3.2. Construct and Fitting StackingEnsembleForecaster

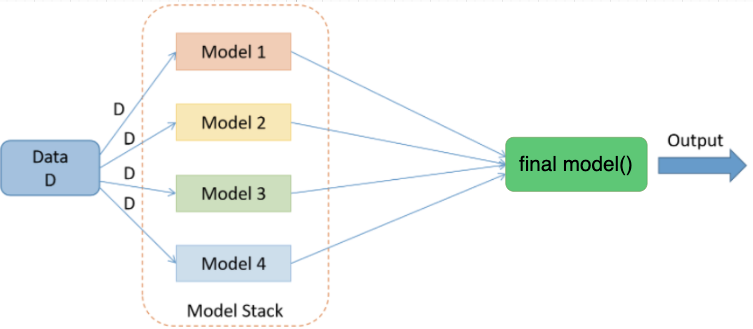

StackingEnsembleForecaster use a final learner to fit the base model predictions, use GradientBoostingRegressor(max_depth=5) by default. It has been verified that stacking ensemble can achieve better results than the underlying model in many cases. More infomation about StackingEnsembleForecaster please read StackingEnsembleForecaster doc .

Example1

Use default final_learner by default (default learner is GradientBoostingRegressor(max_depth=5))

from paddlets.ensemble import StackingEnsembleForecaster

reg = StackingEnsembleForecaster(
in_chunk_len=7 * 24,
out_chunk_len=24,
skip_chunk_len=0,
estimators=[(NHiTSModel, nhits_params),(RNNBlockRegressor, rnn_params), (MLPRegressor, mlp_params)])

reg.fit(ts_train, ts_val)

Example2

Use self defined final learner

from sklearn.linear_model import Ridge
from paddlets.ensemble import StackingEnsembleForecaster

reg = StackingEnsembleForecaster(
in_chunk_len=7 * 24,
out_chunk_len=24,
skip_chunk_len=0,
estimators=[(NHiTSModel, nhits_params),(RNNBlockRegressor, rnn_params), (MLPRegressor, mlp_params)],
final_learner=Ridge(alpha=0.5))

reg.fit(ts_train, ts_val)

4. Backtest on Ensemble Forecaster

from paddlets.utils import backtest
from paddlets.metrics import MAE
mae, ts_pred = backtest(data=ts_val_test,
                model=reg,
                start="2013-03-01 00:00:00",  # the point after "start" as the first point
                metric=MAE(),
                predict_window=24,
                stride=24,
                return_predicts=True
                )
